From Cables to Bunks: A Guide to Boat Lift Cradle Parts and Their Functions

By Dock Stop Staff | February 24, 2026

When it comes to protecting your watercraft, the lift frame is only half the story. The real “heavy lifting” happens at the cradle—the structural platform that directly supports your boat’s hull.

Understanding your boat lift cradle parts is essential for more than just maintenance; it is about safety. If one component of the cradle beam assembly fails, the entire system is compromised. In this guide, we break down the anatomy of a boat lift cradle and how these parts work in harmony to keep your boat high and dry.

What Exactly Is a Boat Lift Cradle?

The cradle is the moving framework that travels vertically within the lift’s stationary posts. It connects to the boat lift pulley system to distribute the vessel’s weight evenly.

The core boat lift components within a cradle include:

  • I-Beams & Cross-Members: The “skeleton” of the lift.

  • Pulleys (Sheaves): The moving joints.

  • Cables: The muscle that provides the pull.

  • Bunk Brackets & Bunks: The interface between the lift and your boat.

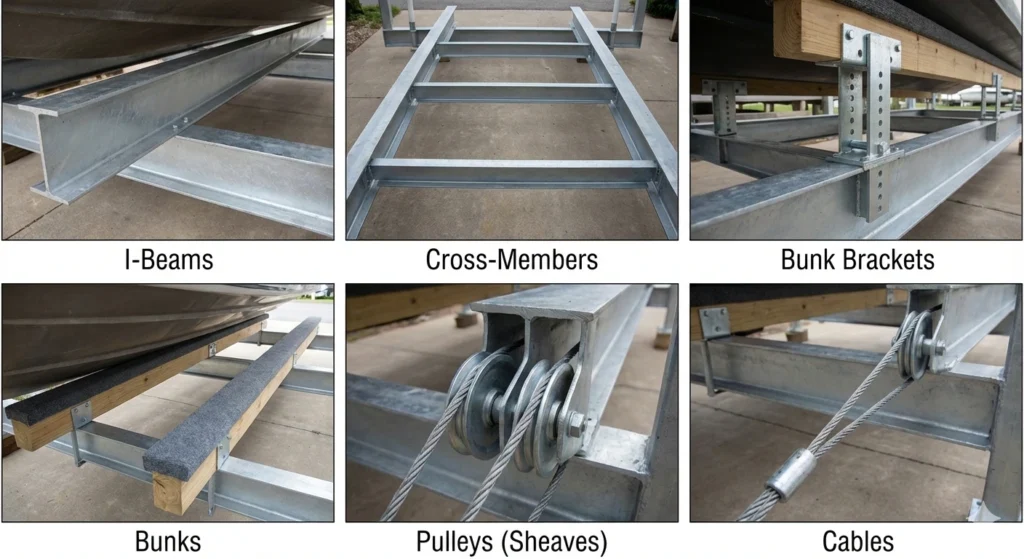

Breaking Down the Main Boat Lift Cradle Parts

1. I-Beams: The Structural Backbone

The I-beams are the primary load-bearing structures of the cradle beam assembly. Usually made of marine-grade aluminum, these beams run the width of the lift.

  • Function: They support the entire weight of the boat and transfer that load to the cables.

  • What to Watch For: Look for “bowing” or permanent bends. If an I-beam is no longer perfectly straight, it has been overloaded and needs immediate replacement.

2. Pulleys (Sheaves): The Movement Mechanism

Pulleys—technically called sheaves—are the grooved wheels located at the corners of the cradle.

  • Function: They guide the cables and provide the mechanical advantage needed to lift thousands of pounds.

  • Maintenance Tip: Listen for squeaking or grinding. A seized pulley will cause the cable to “saw” through the metal, leading to a catastrophic cable snap.

3. Bunk Brackets: The Adjustable Foundation

Bunk brackets connect your support boards (bunks) to the cradle’s I-beams.

  • Function: They allow you to adjust the height and angle of the bunks to perfectly match your hull’s “V” shape.

  • Crucial Step: Ensure these are aligned under the boat’s internal stringers to prevent hull deformation.

4. The Boat Lift Pulley System & Cables

The cables are the “lifelines” of the cradle. In a standard four-post lift, these cables must be perfectly synchronized.

  • Function: They pull the cradle upward evenly.

  • Inspection Rule: Run a gloved hand (or a cloth) over the cables. If the cloth snags on “meat hooks” (frayed wires), it is time to replace the cables.

How the Cradle Beam Assembly Works Together

The efficiency of your lift depends on a “Chain Reaction” of these parts:

  1. The Motor turns the drive shaft, winding the cables.

  2. The Cables pull through the boat lift pulley system.

  3. The Pulleys allow the cradle to rise vertically without friction.

  4. The I-Beams stay level, ensuring the bunk brackets keep the boat centered.

Once your cradle structure is secure, proper bunk positioning ensures your boat is supported safely. Our step-by-step guide to adjusting boat lift bunks explains how to align them with your boat’s structural stringers.

Common Signs of Cradle Wear

Don’t wait for a failure to inspect your boat lift components. Watch for these red flags:

  • “Walking” Cables: Cables that don’t sit squarely in the pulley grooves.

  • Bleeding Rust: Discoloration around bolts or cable clamps (a sign of internal corrosion).

  • Uneven Lifting: One corner of the cradle sitting lower than the others.

  • Worn Bunk Carpet: Bare wood touching your hull can lead to permanent gel coat scratches.

The Foundation of Safe Lifting

From I-beams to bunks, every element of your cradle serves a purpose. Understanding boat lift cradle parts empowers you to maintain your lift properly, prevent damage, and ensure safe operation year after year.

Installing or repositioning cradle components can be physically demanding. The Boat Lift Helper simplifies seasonal setup, removal, and lift adjustments for safer, easier handling.

The cradle isn’t just a frame — it’s the structural foundation that protects your boat every time you lift it.
