If you’re a boat owner looking to protect your investment and save money, DIY boat lift plans might be exactly what you need. Building your own boat lift at home not only gives you full control over the design, but it also offers a cost-effective solution compared to buying a pre-made lift. In this step-by-step guide, we’ll show you how to create a sturdy, reliable boat lift that fits your needs and helps you get the most out of your waterfront property.

Why Build a DIY Boat Lift?

Building a DIY boat lift is a smart move for boaters who want a customized and affordable way to keep their vessel dry and secure. Store-bought lifts can cost thousands, and they’re often not tailored to your exact boat size or dock setup. A homemade boat lift allows you to adjust the frame, lift mechanism, and bunks to suit your watercraft perfectly.

Materials and Tools You’ll Need

Before starting, gather the essential materials and tools for the job.

Materials:

  • Galvanized steel or aluminum pipes (for the frame)

  • Winch system (manual or electric)

  • Cables or lifting straps

  • Marine-grade pulleys

  • Wooden bunks with marine carpet

  • Stainless steel hardware (nuts, bolts, washers)

  • Anchoring system (concrete or dock mounts)

Tools:

  • Power drill

  • Saw or pipe cutter

  • Measuring tape

  • Wrench set

  • Welding tools (if required)

  • Spirit level

Step-by-Step DIY Boat Lift Plans

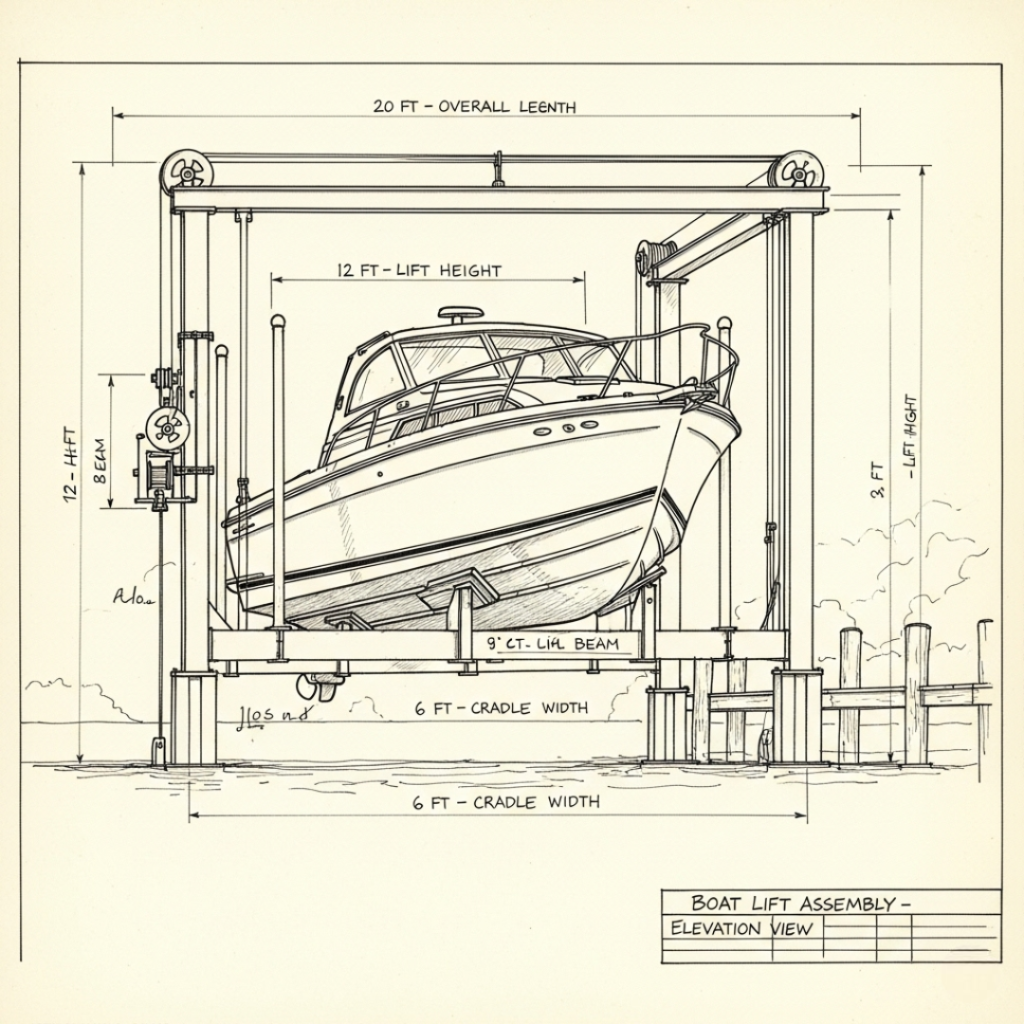

1. Design and Plan

Start with accurate measurements of your boat’s length, beam (width), and weight. Use these figures to sketch your lift or consult DIY boat lift plans found online. Make sure your design accommodates the shape and size of your boat.



2. Build the Frame

Create a sturdy rectangular or cradle-style frame from galvanized steel or aluminum pipes. Secure all joints with bolts or welds to ensure structural integrity. The frame should be able to support the full weight of your boat without flexing.

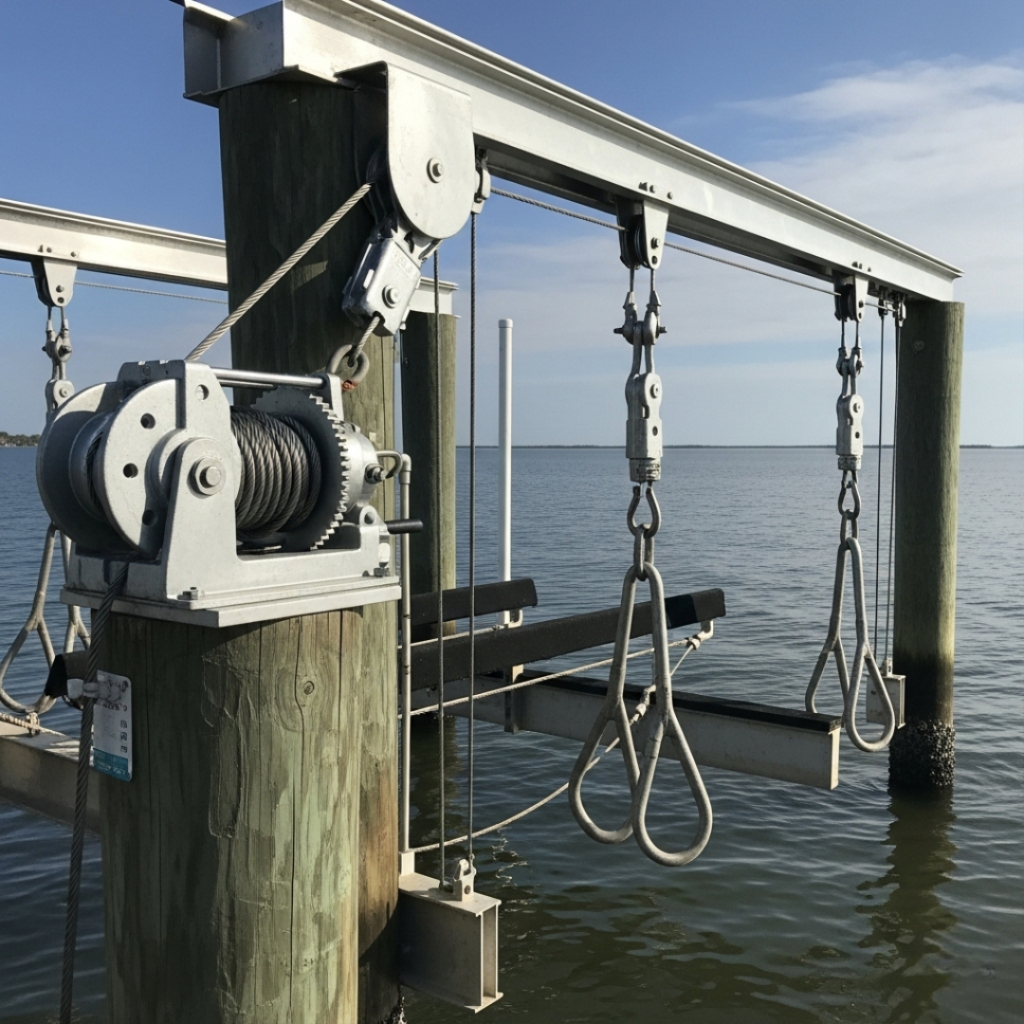

3. Install the Winch and Pulleys

Attach a heavy-duty winch system to a dock post or support beam. Thread steel cables or lifting straps through pulleys to create an even lift system. Make sure the winch is rated for the total load and is easy to operate.

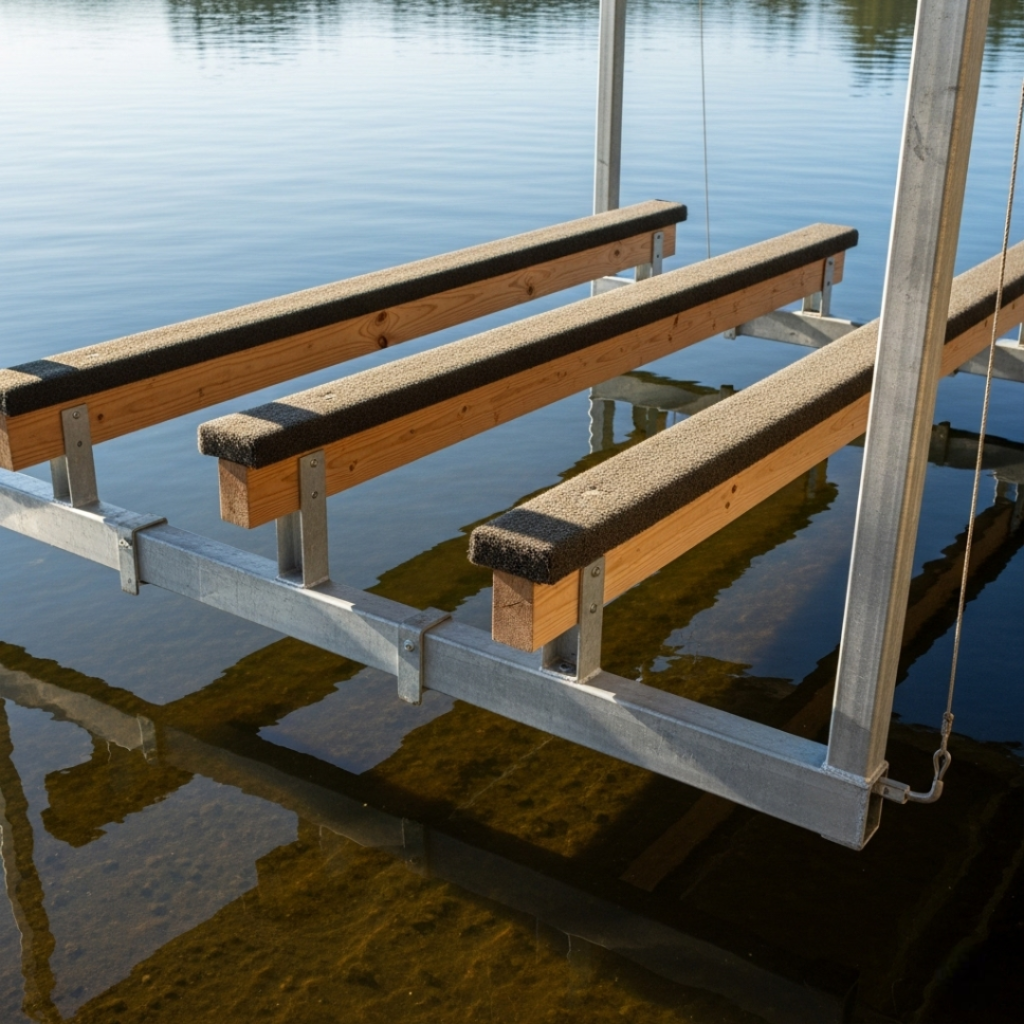

4. Mount the Bunks

Attach wood bunks to the frame and pad them with marine carpet to protect your boat’s hull. Space the bunks according to your boat’s hull shape for proper support and balance during lifting.

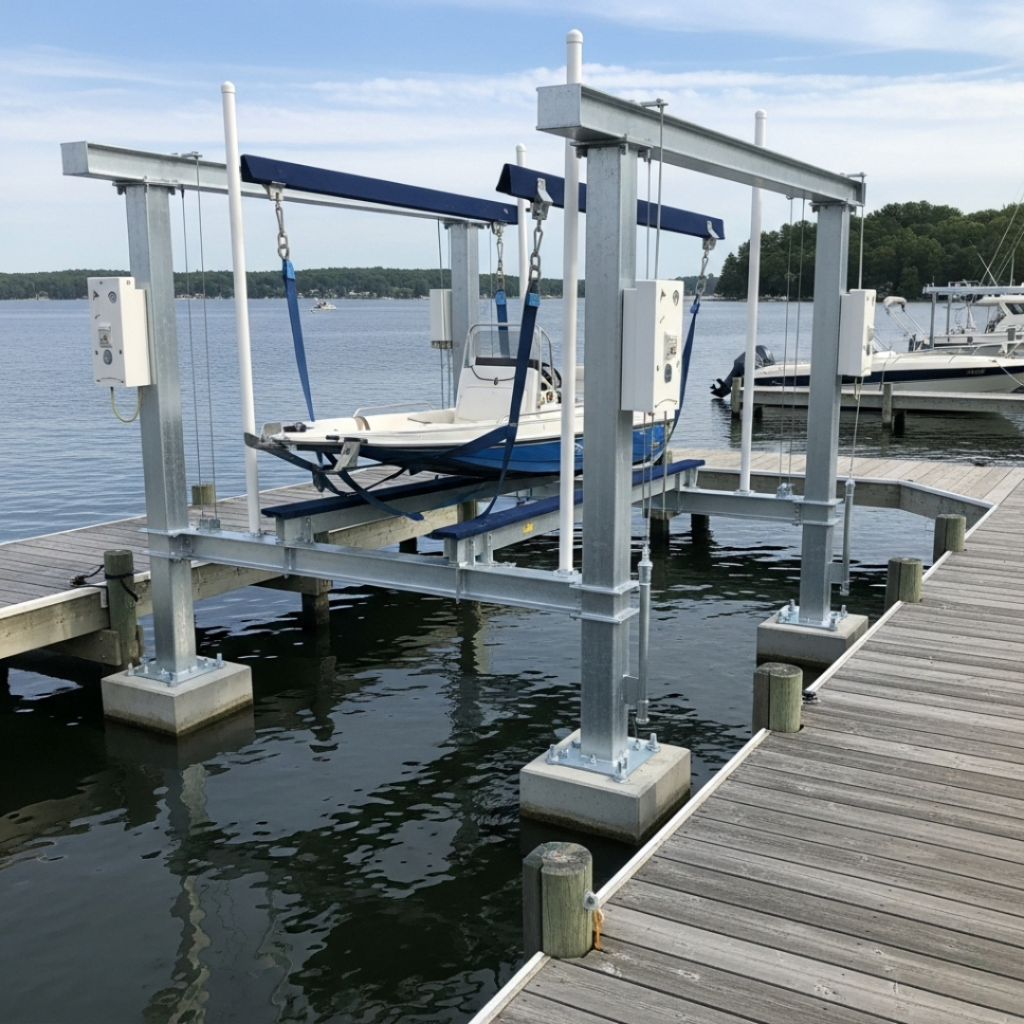

5. Anchor the Lift

Secure the lift to your dock, pilings, or shoreline using strong anchor points or concrete bases. A well-anchored lift prevents shifting or tipping during use.

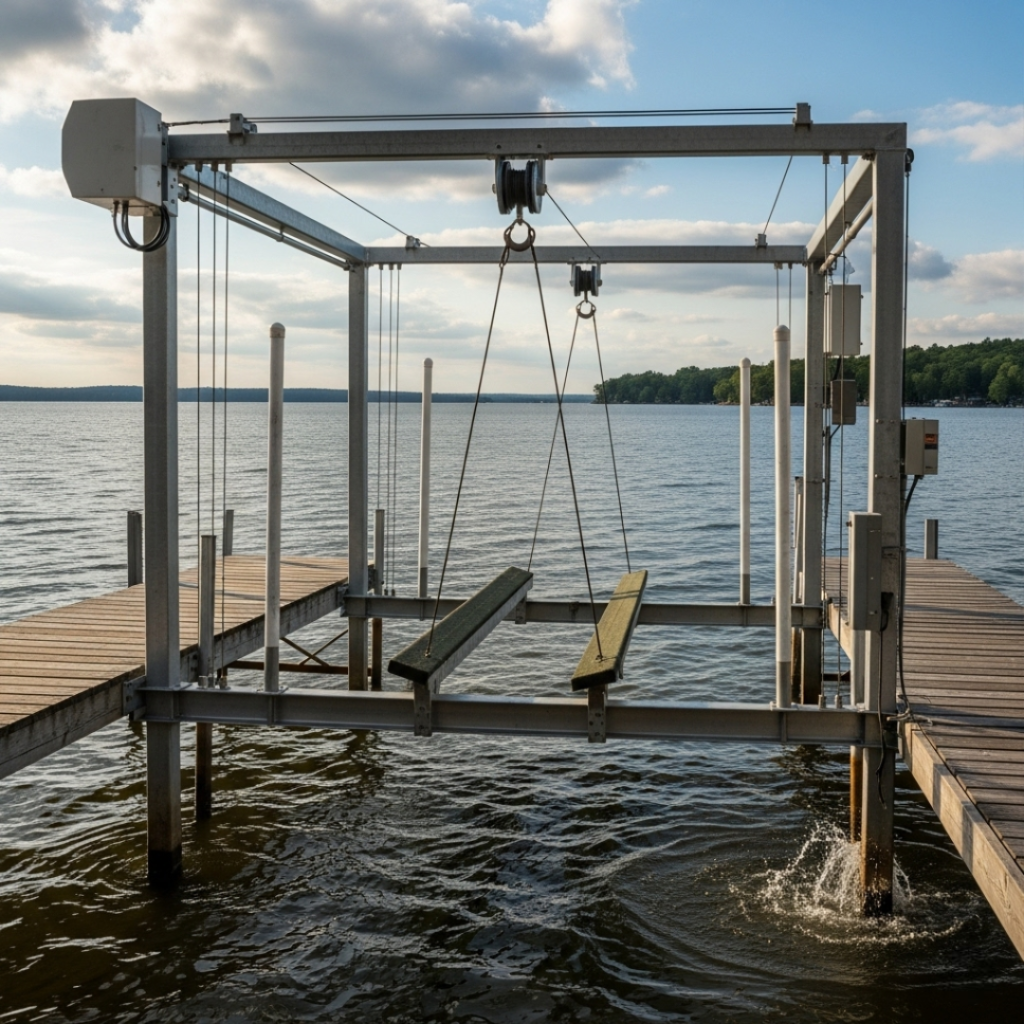

6. Test the System

Before placing your boat on the lift, test it with no load. Raise and lower the frame to ensure smooth operation, balanced movement, and no structural issues.



Tips for a Successful Build

  • Use corrosion-resistant materials to prolong the life of your lift.

  • Double-check all cable connections and anchor points before first use.

  • Consult a marine specialist if you’re unsure about load ratings or mechanics.

  • Always follow safety procedures when lifting or testing your boat lift.

Creating your own lift using DIY boat lift plans is a rewarding project that can save money and extend the life of your boat. With proper planning, durable materials, and the right tools, you can build a lift that works just as well if not better than a commercial model. Whether you’re a seasoned builder or a weekend DIY enthusiast, this project is well within reach. For quality marine hardware, accessories, and expert support, be sure to check out Dockstop, your trusted partner in building better docks and boat lifts.
